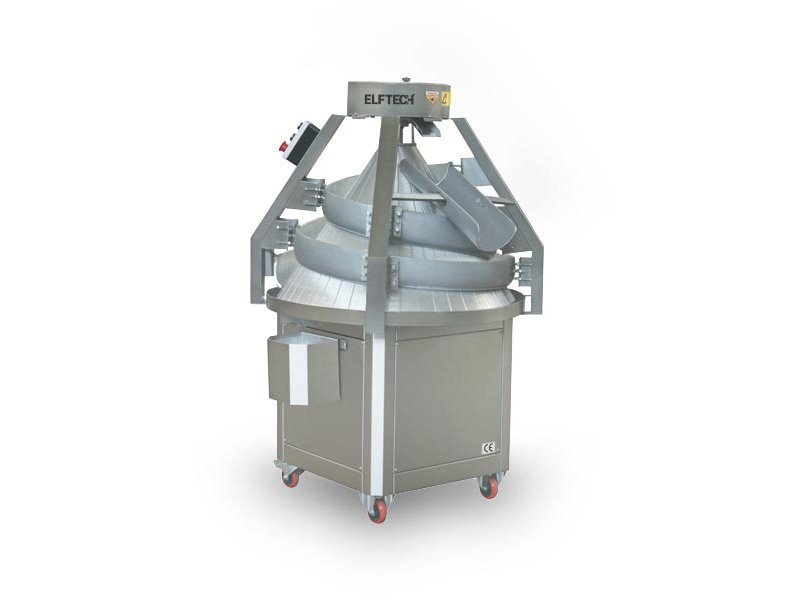

Conical Rounding Machine

This machine is designed with a rotating cone and adjustable spiral shaped corrosion resistant channels around it.  The dough is perfectly rounded while moving from bottom to top in the channels. The machine is also equipped with a newly designed mechanical flour duster which does not produce any noise while working. It works with a reduction drive unit. All moving part has bail bearings and the machine is on the wheels, so mobile.
1. Cold air blowing
2. Hot air blowing
3. Teflon coated channels and cone

  • Technical drawing
  • Product Specifications

Model Birim ESL 200
Kapasite pcs / h 1000 – 2000
Dough rounding range g (50 – 200), (100 – 600), (200 – 1000), (300 – 1250)
Height of dough entrance (H1) kg 860
Height of dough exit (H2)) mm 940
Width (W) mm 920
Length (L) mm 920
Height (H) mm 1500
Electrical power kW 0,55
Weight of machine kg 180
